Jupyter Notebooks¶

Overview¶

Jupyter Notebooks and Jupyter Lab, formerly iPython Notebooks, are quite popular in scientific computing. Notebooks provide an intuitive editor, facilitate check-pointing, smoothly integrate prose with code (better than comments!), and generally facilitate strong collaborations. Perhaps most significantly, Notebooks provide an excellent framework to achieve highly reproducible research.

Originally, iPython notebooks were (almost) strictly Python centric. The rebranding to Jupyter reflects, amongst other things, generalizing the platform to integrate additional languages like R into the fold. Jupyter Lab is a more recent expansion of Notebook that includes a terminal and other tools.

A Jupyter Notebook or Lab session runs like a web application, with the notebook and programming environment (like Python) running as a service on the host machine. Fundamentally, Jupyter Notebooks are (apparently) designed to run on your local machine, but they can be run on remote systems by using SSH and port forwarding.

[//]: # both of these work to render the image:

[//]: #

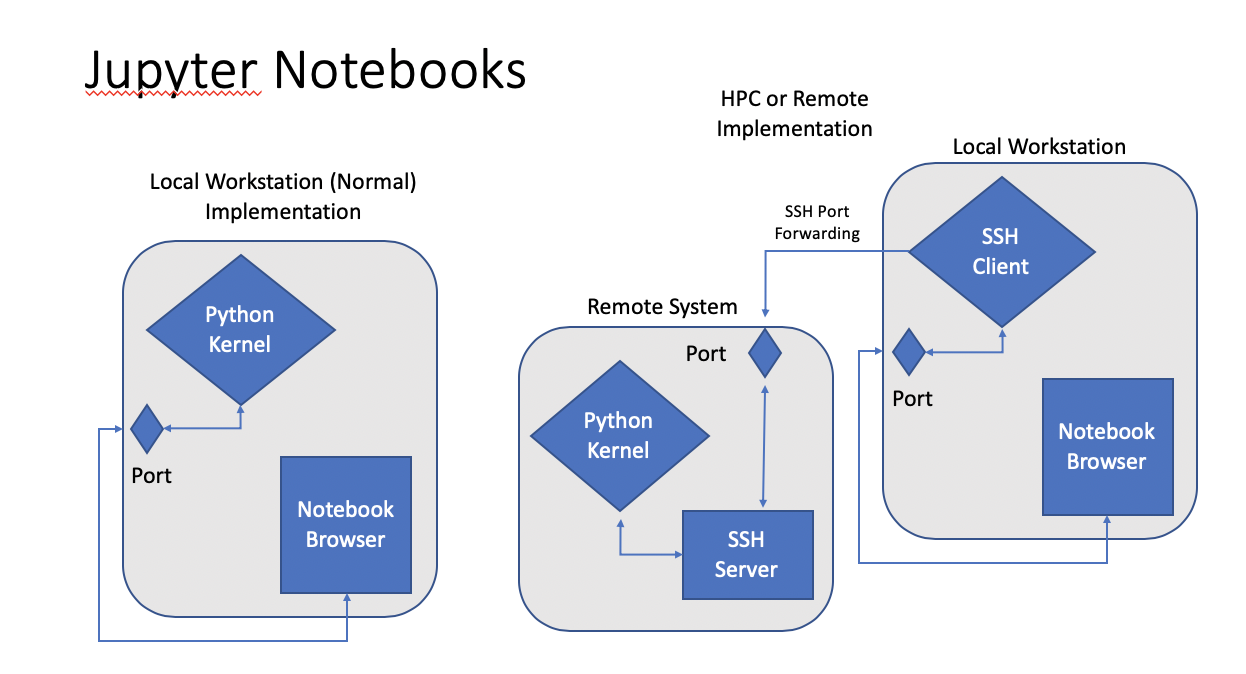

Jupyter Notebook HPC Diagram Fig. 1: Diagram of local and HPC Jupyter Notebook connection. In the HPC, or other remote, connection, the local machine uses SSH port-forwarding to connect the local notebook web service port to a port on the remote system.

The details of implementing this on Stanford Earth HPC systems varies slightly, but the same principal concepts apply. This basically requires:

Starting a Jupyter Notebook session on the remote system
Identifying free ports on the client and remote system. This is typically not challenging, as most operating systems have lots of ports
Connecting the local and remote ports via SSH Port Forwarding

CoderWall provides a pretty good general tutorial:
https://coderwall.com/p/ohk6cg/remote-access-to-ipython-notebooks-via-ssh

NOTE to Python 2.x Users: This document will be written in the context of Python 3. Support for Python 2.x is waning, so all Python 2.x scirpts and libraries should be converted to 3.x. See the discussion below.

Sherlock: OnDemand¶

Jupyter Notebooks can also be accessed via OnDemand Interactive Portal:

Information: Sherlock OnDemand
Connect to Sherlock OnDemand

Be sure to follow the UI promts to specify your desired partition and other HPC resources -- just like any other SLURM reqeust, and to load any LMOD modules when the job starts.

Sherlock: SSH Forwarding¶

Connections to Jupyter Notebooks can also be made via ssh port forwarding:

Connect to a sherlock login node:
```
[local]$ ssh <SUNetID>@sherlock.stanford.edu
```
Remember, Sherlock will also ask for two-factor authntication.
Request an interactive session (note, some of these parameters are optional). Depending on the resources requested, it might take SLURM a few minutes to allocate resources. For example, to request a single task with 4 CPU-cores, with 8 GB/cpu-core (probably the default) on the serc partition:
```
[sh-lnxx]$ salloc --cpus-per-task=4 --mem-per-cpu=8g --partition=serc
```

{:start=“3”}

Sherlock will open a compute session; note the prompt will change from [sh-lnxx] (a login node) to [sh-xxx-yy]. Load modules, set environmental varialbes, and peform shell setup as necerssary. Note, on Sherlock, it may be necessary to load quite a few Python library modules. At the bare minimum, load the python and jupyter modules, and maybe numpy and pandas for good measure:
```
[sh-xxx-yy]$ module load python/3.9
[sh-xxx-yy]$ module load py-jupyter/1.0.0_py39
[sh-xxx-yy]$ module load py-numpy/1.20.3_py39 py-numpy py-pandas/1.3.1_py39
```
Load aditional modules as necessary. To see a list of available modules,
```
[sh-xxx-yy]$ module avail
```
To see a lits of available modules with `python’ in the name,
```
[sh-xxx-yy]$ module avail | grep python
```
or, even better, use module spider,
```
[sh-xxx-yy]$ module spider python
[sh-xxx-yy]$ module spider py-numpy
```
Start a Jupyter Notebook server. We can specify a port to listen on, or we can note the one it assigns:
```
[sh-xxx-yy]$ jupyter-notebook --no-browser --port=xxxxx --ip=`hostname -s`
```
Port forwarding: On your local workstation, launch an ssh session with port forwarding:
```
[local]$ ssh -L yyyy:<compute_node>:xxxx <SUNetID>@sherlock.stanford.edu
```
Where yyyy is your local port and xxxx is the remote port (as requested in the Notebook parameter, --port=xxxx). To avoid confusion, these can usually be set to the same value, eg. -L8892:sh03-09n27:8892. Again, Sherlock may request two-factor authentication.
Launch Jupyter Notebook: On your local machine, cut-paste the token string and navigate to this address:
```
 http://localhost:xxxxx?token={<the long token string>}
```

Interactive Figures¶

Figure rendering in Notebooks can be controlled by using the “magic” expressions %matplotlib {option}. For example, %matplotlib inline renders Matplotlib or pyplot figures “inline,” as fixed size static images. Several options are available to render interactive figure windows, similar to the familiar plt.show() interactive standard in Python CLIs, as well (presumably?). Performance may vary with time, software updates, between one browser and another, etc., so givign the subject a good Googling (or Binging, or query your favorite search engine or ask your preferred VLLM AI tool). One option that recently worked well is,

%matplotlib notebook

This option appears to work in both SSH forwarded and On Demand sessions, for example:

%load_ext autoreload
%autoreload 2
%matplotlib notebook

import pylab as plt
import numpy

X=numpy.linspace(0,numpy.pi*2.0, 500)
Y = numpy.sin(X)
#

fg = plt.figure(figsize=(10,8))
ax = fg.add_subplot(1,1,1)
ax.plot(X,Y, ls='-', lw=3., marker='')

ax.grid()

Port Forwarding: General Comments¶

Local port forwarding forwards a local port (usually on your local machine) to a remote machine (Sherlock compute node). In other words, traffic to a port on your machine is rerouted to a port on a remote machine. The general syntax is (more or less):

    [sh-xxx-yy]$ ssh -L <machine_from>:<port_from>:<machine_to>:<port_to> remote_host

This syntax can be awkward, as the use of the term ‘local’ or ‘local_host’ is sometimes confusing. For example -- using the more complet notation,

    [sh-xxx-yy] ssh -L local_host:8888:local_host:8889 me@remote_host

forwards port 8888 on the local workstation to port 8889 on remote_host, so we awkwardly refer to both the local and remote machines as as local_host. This can be better understood as the being the local side on the left and the remote side on the right, so the left local_host refers to the local machine running the ssh client, and the right side refers to the remote machine, specified as the argument to the ssh command (the ssh host).

This actually arises from some higher versatility in the system, namely that the port need not necessarily map to remote_host. As will be discussed below, this can be useful on HPC systems where we port-forward to a worker node via authentication on a login node.

We start with a few comments on the example above. If we assume that your local workstation is named local_workstation, and the remote host is remote_host, the following are identical ssh port-forwarding statements:

[sh-xxx-yy]$ ssh -L local_host:8888:local_host:8889 me@remote_host
[sh-xxx-yy]$ ssh -L local_host:8888:remote_host:8889 me@remote_host
[sh-xxx-yy]$ ssh -L 8888:local_host:8889 me@remote_host
[sh-xxx-yy]$ ssh -L local_workstation:8888:local_host:8889 me@remote_host
[sh-xxx-yy]$ ssh -L local_workstation:8888:remote_host:8889 me@remote_host

The IP address or named URL of either machine may be used as well.

As discussed above, for some HPC systems -- including Sherlock, worker nodes may not be directly accessible for authention, so we might authenticate to remote_host via login_node

[sh-xxx-yy]$ ssh -L 8888:remote_host:8889 me@login_node

which wqill map your local port 8888 to port 8889 on remote_host, by authenticating with login_node. More specifically in the context of Sherlock,

[sh-xxx-yy]$ ssh -L 8888:compute_node:8889 my_SUNetID@login.sherlock.stanford.edu

forwards your local port 8888 to port 8889 on compute_node (actually named something like sh03-09n22); this action is authorized by the login node, to which the SSH connection is made.

Python 3.x Conversion¶

NOTICE to Python 2.x Users: Development and support of Python 2.x has (long since...) ceased and is being systemattically cancelled by contributing organizations. All support of and development on Python 2.7 (the most recent 2.x version) is slated to end on 1 January 2020. pip will end support for Pytnon 2.x in 2020.

Python 2.x scripts and libraries should be converted to Python 3.x. This process is typically a bit involved, but is relatively straight forward. SRCC can help!

Contact the SDSS-CC support team for assistance
See the Python 2to3 conversion tool. This is often the begining, not the end of a conversion, but it is a very good start.
Conversion basically involves:
- print -> print()
- xrange() -> range(), and generally revisiting range() type sequence generators
- There are a few libraries that have chaned names or organization (urllib libraries; sklearn submodules might be reogranized, etc.)
- String handling: Python3 may interprete a string as a binary array, which will need to be “decoded” to be interpreted as a string
```
  stringlike = binary_array.decode()
  arraylike = string.encode()
```
